Rapid Shutdown Device
XRSD
-
1 connection / 2 connections
Prioritizing safety and rapid shutdown capabilities, the XRSD series offers a sophisticated module-level solution that guarantees the smooth functioning of both new and existing PV systems. Once activated by the SolaX Transmitter—XRSD-Core Kit, the XRSD modules ensure your connected PV system remains operational.
-
Watch Video
Product Advantage
In case of emergencies, you have multiple shutdown options: either remotely control each individual panel through the SolaX cloud, toggle the AC breaker on the Transmitter, or engage the E-STOP button. This versatility makes the XRSD system a reliable safety measure for quick deactivation of your PV system as needed. Note: To achieve rapid shutdown, please use with the TRANSMITTER KIT (Model: XRSD-CORE KIT).
Assured Safety
Module-level rapid shutdown
IP68 with unrivaled reliability
High Efficiency
Max. 20A PV input current
Lower power consumption & wider operating voltage
Intelligent Design
Faster installation with plug-and-play cables and connectors
Ultra-low signal noise, enhancing system stability
Flexible Adaptability
Compatible with all SolaX inverters and other major inverter brands
Compatible with mainstream PV panels
Product Parameters
-
XRSD-2C-
MECHANICAL
Dimensions(without cables and connectors 135 × 59 × 20 mm Weight 720 g Protection class IP68 / NEMA6P -
COMPLIANCE
Safety EN 62109-1:2010 EMC EN IEC 61000-6-1 / 2 / 3 / 4; EN IEC 61000-3-2 / 3 / 11 / 12; EN 55011
-
-

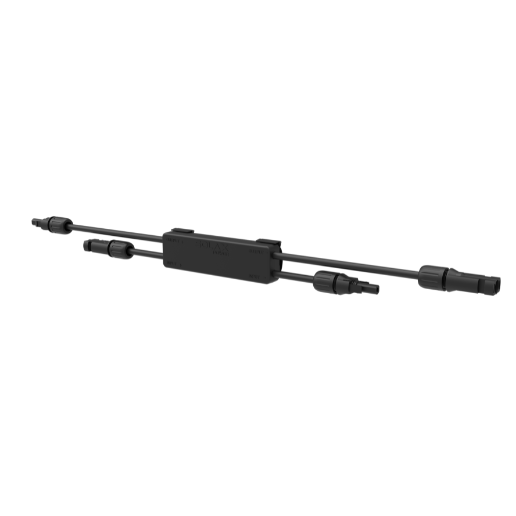

XRSD-1C
-
MECHANICAL
Dimensions(without cables and connectors 130 x 36 x21 mm Weight 400 g Protection class IP68 / NEMA6P -
COMPLIANCE
Safety CE, RCM, Telec, PSTI EMC EN IEC 61000-6-1 / 2 / 3 / 4; EN IEC 61000-3-2 / 3 / 11 / 12; EN 55011
-
Data Download
-
Datasheet
-
User Manual
-
Quick Installation Guide
-
File nameLanguageFormatSizeLast updateddownload
