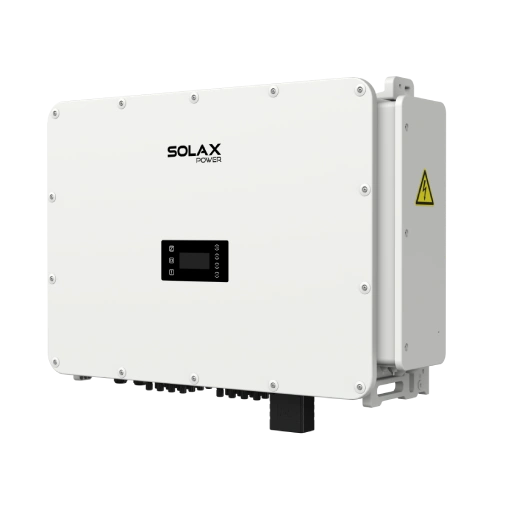

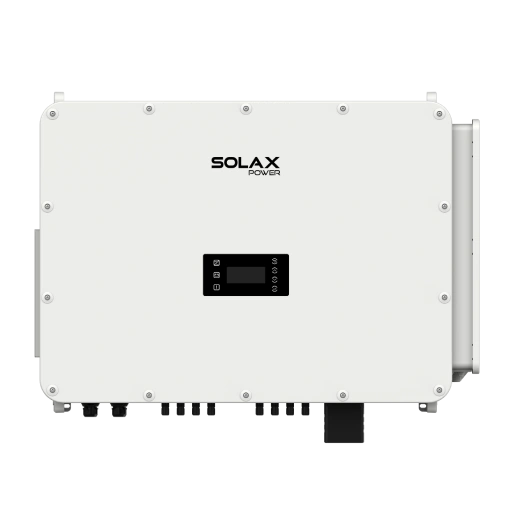

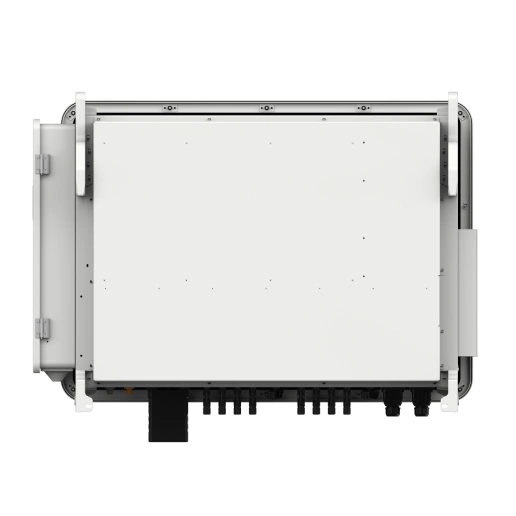

Hybrid Inverter
AELIO
-
80kW / 99kW / 100kW / 125kW / 130kW
The AELIO three-phase hybrid inverter is available in 80kW-130kW models, offering flexible solutions for commercial and industrial energy storage systems. Self-cleaning reverse fans further reduce maintenance needs for long-term reliability.
Product Advantage
The AELIO hybrid inverter delivers up to 130kW continuous output, supports 42A PV input current, and enables parallel operation of up to 10 units. Supporting multiple battery configurations, VPP integration and DC-coupled microgrid applications, it enables flexible energy solutions.
Flexible Configuration
Max. PV input current 42 A
130kW max continuous output; up to 10 units parallel connection
Multiple battery combinations available, supporting 2–8h system
Optional GEN interface for precise control
Safe and Reliable
SPDⅡ＋Ⅱ
100% unbalanced output, precise feed-in power control
Max. charging/discharging current of 200A
0ms Seamless Switching*Switching cabinet required for >3 units
Intelligent Applications
AI-driven energy scheduling with EMS
Multiple operation modes supported
Compatible with VPP, FCAS and other grid auxiliary services
DC-Coupled Microgrid Solution for Improved System Efficiency
Easy Maintenance
LCD Intelligent Interaction
Remote monitoring and OTA firmware upgrade
Auto-reverse fans for dust self-cleaning , zero manual work
Plug-and-play design for fast wiring & installation
Product Parameters
-
AEL80T-
PV INPUT
Max. recommended PV array power
120 kWp
MPPT voltage range
160 ~ 850 d.c. V
No. of MPP trackers / Strings per MPP tracker
6 / (2/2/2/2/2/2)
Max. input current per MPPT
42/42/42/42/42/42 d.c. A
-
AC INPUT & OUTPUT (ON-GRID)
Rated output power 80 kW Adjustable power factor range ~ 1 (0.8 lagging to 0.8 leading) -
EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Peak EPS output power
1.2*Prated,10s
Switchover time
0 ms
-
GENERAL
Dimensions (W × H × D)
1150 × 790× 365mm
Weight
170 kg
Ingress protection
IP66
-
-
AEL99T
-
PV INPUT
Max. recommended PV array power 150 kWp
MPPT voltage range
160 ~ 850 d.c. V
No. of MPP trackers / Strings per MPP tracker
8 / (2/2/2/2/2/2/2/2)
Max. input current per MPPT
42/42/42/42/42/42/42/42 d.c. A
-
AC INPUT & OUTPUT (ON-GRID)
Rated output power 99 kW Adjustable power factor range ~ 1 (0.8 lagging to 0.8 leading) -
EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Peak EPS output power 1.2*Prated,10s Switchover time 0 ms -
GENERAL
Dimensions (W × H × D)
1150 × 790× 365mm
Weight
170 kg
Ingress protection
IP66
-
-
AEL100T
-
PV INPUT
Max. recommended PV array power
150 kWp
MPPT voltage range
160 ~ 850 d.c. V
No. of MPP trackers / Strings per MPP tracker
8 / (2/2/2/2/2/2/2/2)
Max. input current per MPPT
42/42/42/42/42/42/42/42 d.c. A
-
AC INPUT & OUTPUT (ON-GRID)
Rated output power
100 kW
Adjustable power factor range
~ 1 (0.8 lagging to 0.8 leading)
-
EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Peak EPS output power
1.2*Prated,10s
Switchover time
0 ms
-
GENERAL
Dimensions (W × H × D)
1150 × 790× 365mm
Weight
170 kg
Ingress protection
IP66
-
-
AEL125T
-
PV INPUT
Max. recommended PV array power
188 kWp
MPPT voltage range
160 ~ 850 d.c. V
No. of MPP trackers / Strings per MPP tracker
8 / (2/2/2/2/2/2/2/2)
Max. input current per MPPT
42/42/42/42/42/42/42/42 d.c. A
-
AC INPUT & OUTPUT (ON-GRID)
Rated output power 125 kW Adjustable power factor range ~ 1 (0.8 lagging to 0.8 leading) -
EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Peak EPS output power
1.2*Prated,10s
Switchover time
0 ms
-
GENERAL
Dimensions (W × H × D)
1150 × 790× 365mm
Weight
170 kg
Ingress protection
IP66
-
-
AEL130T
-
PV INPUT
Max. recommended PV array power
195 kWp
MPPT voltage range
160 ~ 850 d.c. V
No. of MPP trackers / Strings per MPP tracker
8 / (2/2/2/2/2/2/2/2)
Max. input current per MPPT
42/42/42/42/42/42/42/42 d.c. A
-
AC INPUT & OUTPUT (ON-GRID)
Rated output power 130 kW Adjustable power factor range ~ 1 (0.8 lagging to 0.8 leading) -
EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Peak EPS output power
1.2*Prated,10s
Switchover time
0 ms
-
GENERAL
Dimensions (W × H × D)
1150 × 790× 365mm
Weight
170 kg
Ingress protection
IP66
-
