ESS Accrssories

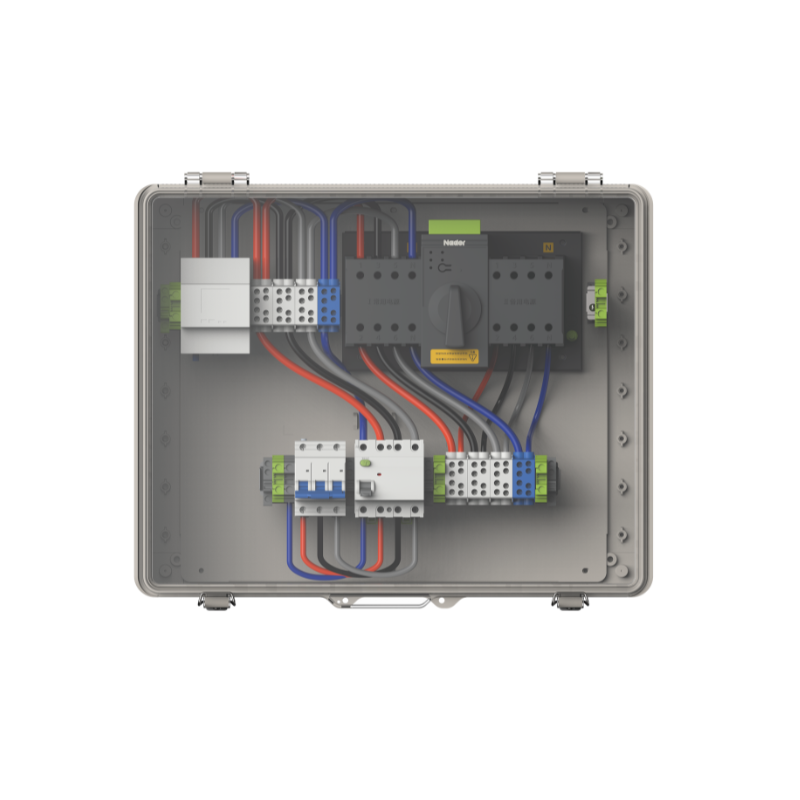

X3-EPS BOX G2

Connects to on-grid inverters (24A), off-grid inverters (24A), utility grid (63A input/25A output), and loads (63A). It contains three 25A components and works at altitudes up to 3000m. Suitable for environments with 4-100% humidity, it meets diverse power distribution needs.

Product Advantage

The X3-EPS BOX G2 supports 220/230/240V voltage and 50/60Hz frequency. It provides 16,500VA max output power and 63A max current. With IP54 protection, Class I safety, and operation from -35°C to 60°C, it ensures reliable performance. The compact unit (12.5kg) switches power in ≤1.8 seconds.

Contact Us

Wide Compatibility

  • Supports 220/230/240V AC voltage

  • Dual frequency operation (50/60Hz)

  • 16,500VA max output power


Product Parameters

  • X3-EPS BOX G2
  • X3-EPS BOX G2
    • GENERAL SPECIFICATION
      Operating temperature range35~60°C (＞ 45°C derating)
      Altitude<3000m
      Dimensions (W × H × D)540 × 430 × 202 mm
      Weight12.5 kg
      Protective class
      		Class I


    • ON-GRID(Inverter)
      Rated AC voltage220/230/240 V
      Rated AC frequency50 / 60 Hz
      Max output apparent power16500 VA
      Max output current24 A


    • OFF-GRID(Inverter)
      Rated output voltage230 V
      Rated AC frequency50 / 60 Hz
      Max output apparent power16500 VA
      Max output current24 A


    • GRID(Utility)
      Rated grid voltage220 / 230 / 240 V
      Rated AC frequency50 / 60 Hz
      Max input current63 A
      Max output current25 A
