Battery

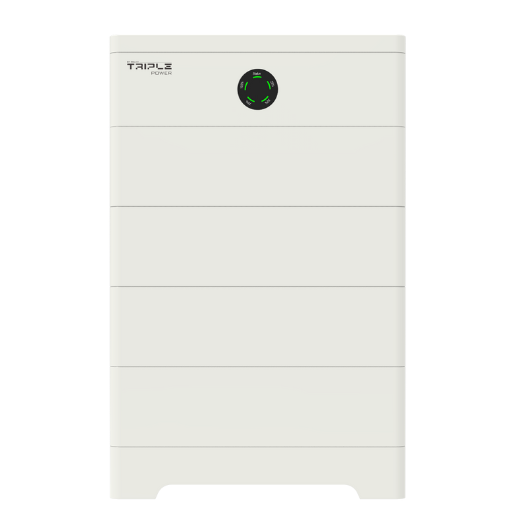

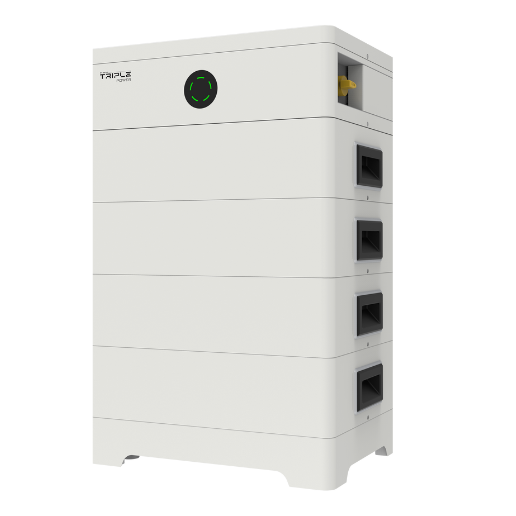

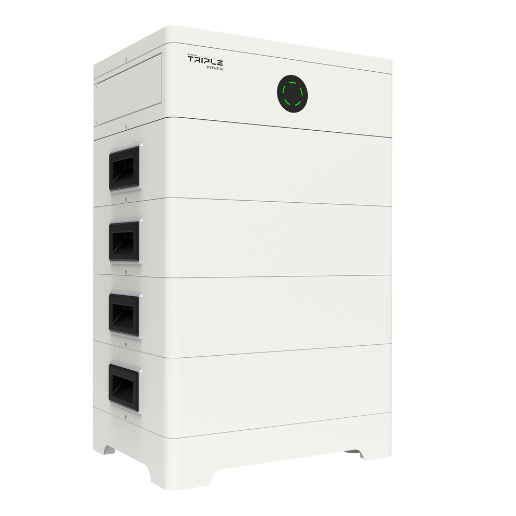

T-BAT-SYS-HV-S2.5

  • 5.1 kWh-33.2 kWh

Equipped with a LFP battery and high-performance processors, it offers a wide capacity range from 5.1 kWh to 33.2 kWh. The T-BAT-SYS-HV-S2.5 features a maximum charging/discharging current of 50A, and IP65 protection for secure operation.

Product Advantage

It offers a reliable energy solution with easy modular installation, and versatility for on-grid, off-grid, and backup applications. Powered by a safe lithium phosphate battery, it ensures long-lasting performance, making it ideal for various energy needs.

Contact Us

Flexible Adaptability

  • Extendable capacity for lifetime use

  • Stackable modules, plug and play design


High Performance

  • 5.1-33.2 kWh wide capacity range

  • Max. 50A charging/discharging current

  • Cycle life > 6000 times

Assured Reliability

  • LiFePO4 battery cell & high-performance processors

  • IP65 protection degree

  • Soft start to protect from a sudden surge

Smart Management

  • Remote fault diagnosis, upgrade and maintenance

  • Unique battery heating tech for low-temperature  operation

  • Optional parallel connection using a two-in-one cable for easy capacity expansion and extend battery lifespan

Product Parameters

  • T-BAT HS5.0
  • T-BAT HS7.5
  • T-BAT HS10.0
  • T-BAT HS12.5
  • T-BAT HS15.0
  • T-BAT HS17.5
  • T-BAT HS20.0
  • T-BAT HS22.5
  • T-BAT HS25.0
  • T-BAT HS27.5
  • T-BAT HS30.0
  • T-BAT HS32.5
  • T-BAT HS5.0
    • SYSTEM DATA
      Number of modules2 Modules
      Rated energy5.12 kWh
      Rated voltage102.4 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS7.5
    • SYSTEM DATA
      Number of modules3 Modules
      Rated energy7.68 kWh
      Rated voltage153.6 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS10.0
    • SYSTEM DATA
      Number of modules4 Modules
      Rated energy10.24 kWh
      Rated voltage204.8 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS12.5
    • SYSTEM DATA
      Number of modules5 Modules
      Rated energy12.80 kWh
      Rated voltage256.0 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS15.0
    • SYSTEM DATA
      Number of modules6 Modules
      Rated energy15.36 kWh
      Rated voltage307.2 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS17.5
    • SYSTEM DATA
      Number of modules7 Modules
      Rated energy17.92 kWh
      Rated voltage358.4 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS20.0
    • SYSTEM DATA
      Number of modules8 Modules
      Rated energy20.48 kWh
      Rated voltage409.6 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS22.5
    • SYSTEM DATA
      Number of modules9 Modules
      Rated energy23.04 kWh
      Rated voltage460.8 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS25.0
    • SYSTEM DATA
      Number of modules10 Modules
      Rated energy25.60 kWh
      Rated voltage512.0 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS27.5
    • SYSTEM DATA
      Number of modules11 Modules
      Rated energy28.16 kWh
      Rated voltage563.2 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS30.0
    • SYSTEM DATA
      Number of modules12 Modules
      Rated energy30.72 kWh
      Rated voltage614.4 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS32.5
    • SYSTEM DATA
      Number of modules13 Modules
      Rated energy33.28 kWh
      Rated voltage665.6 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65
